Click the button below to get in touch with us!Technical parameters
| Rim diameter | 14″ – 42″ |
| Maximum wheel weight | 1600kg |
| Maximum wheel width | 1050mm |
| Maximum wheel diameter | 2300mm |
| Hydraulic power unit | 2.2KW 380V – 3PH – 50HZ (220V optional) |
| Gearbox motors | 2.2KW 380V – 3PH – 50HZ (220V optional) |
| Tire edge pressure | 3300kg |
| Maximum torque | 5265N.m |
| Mobile control handle voltage | 24V |
| Net weight of equipment | 758kg |
| Equipment footprint | 2500×2000mm |
| Voltage | 220/400V 50/60HZ 1P/3P selectable |
| Noise index | ≤70db |
| Temperature | 0℃~40℃ |
Optional Accessories
Weight & Package Size

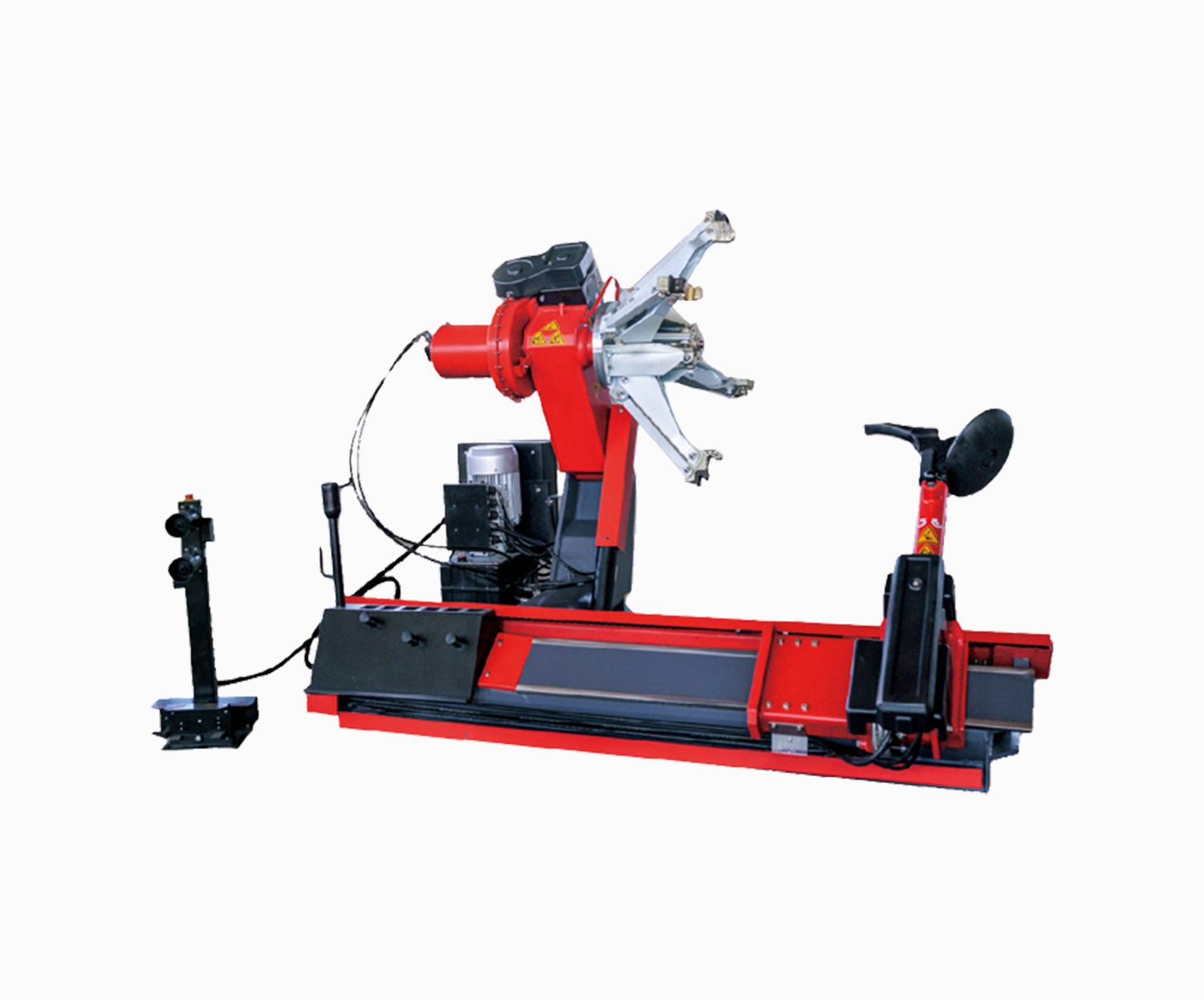

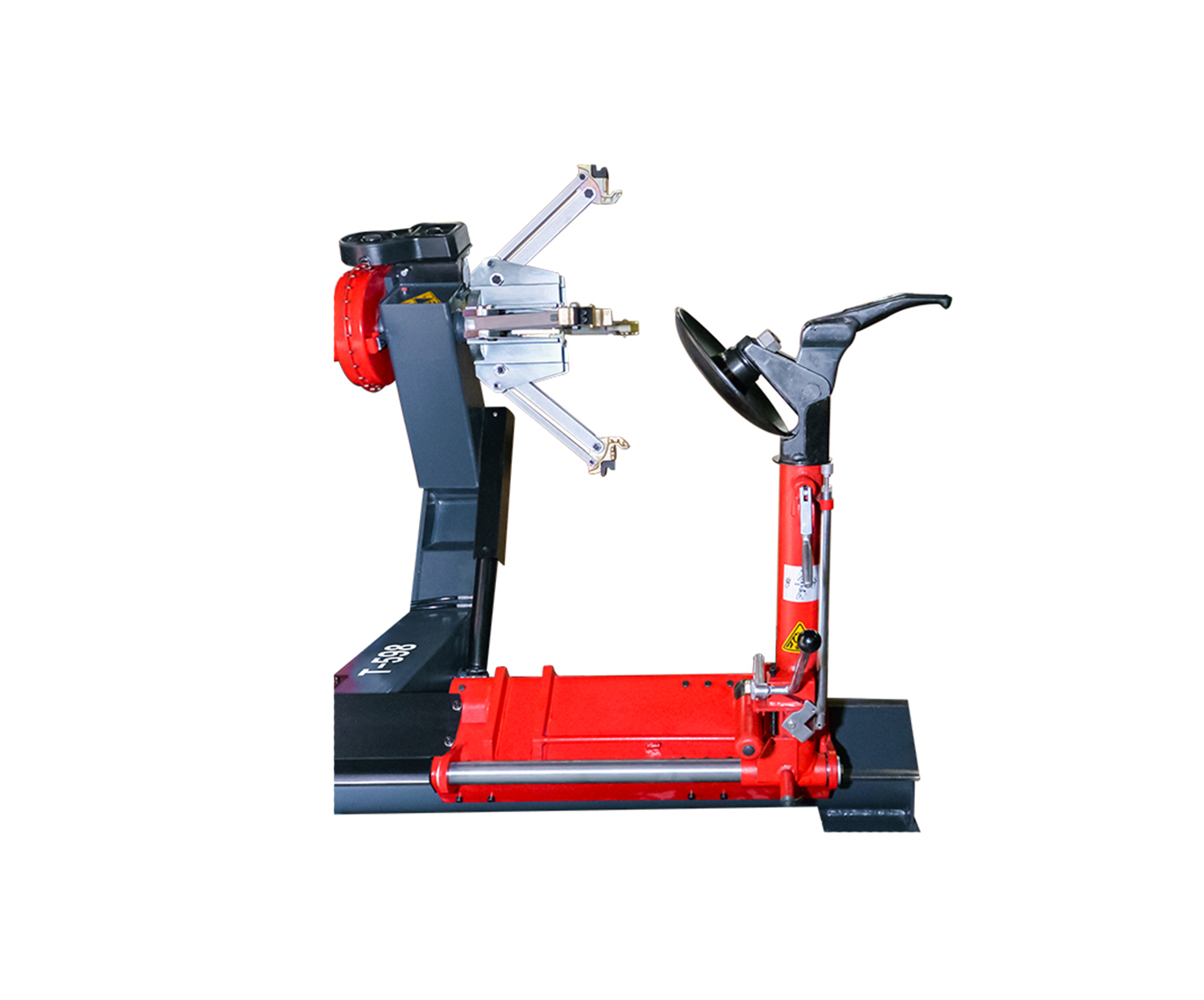

Model: T598
Gross weight (kg): 850
Package size L×W×H（mm） 2130×1850×1050
